ADVANCE GROW TENT SYSTEM 60X60X180 CM, FULL SET FOR GROWING, WIFI-INTEGRATED CONTROLS TO AUTOMATE VENTILATION, CIRCULATION, FULL SPECTRUM LM301H LED GROW LIGHT
- An advance grow tent kit with smart controls and integrated components to start an indoor growing system.
- Controller automates each fan and light with individual programs to dynamically adjust speed and brightness.
- Connect your mobile device to our app via WiFi to automate and track your grow tent climate from anywhere.
- Next-gen EC-motor inline fan 4”, clip fan 6”, and 100W full-spectrum grow light with Samsung LM301H LEDs.
- Premium 2000D Mylar tent 24”x24”x72”, Australian carbon filter, ducting, fabric pots, pruning snips, and more.
ABOUT GROW TENT KIT

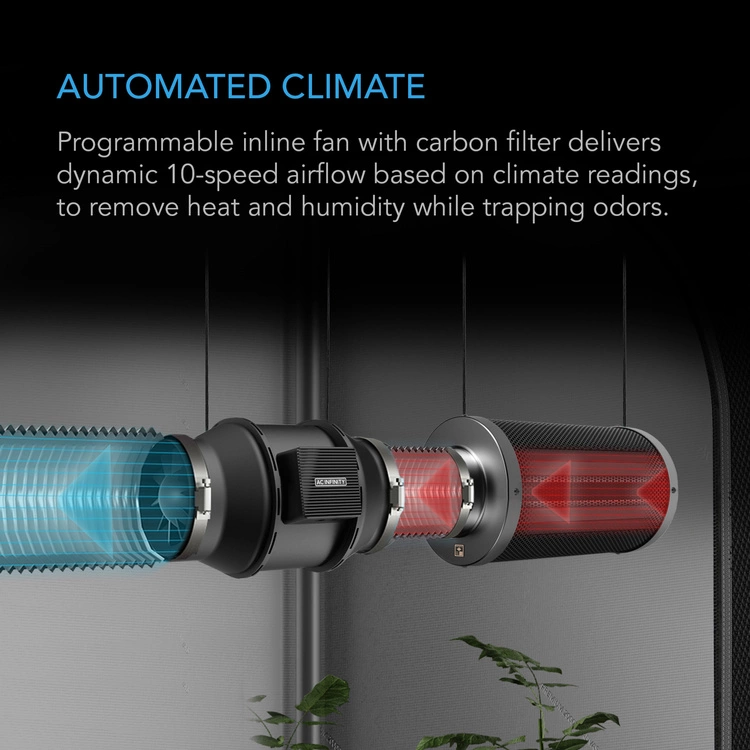

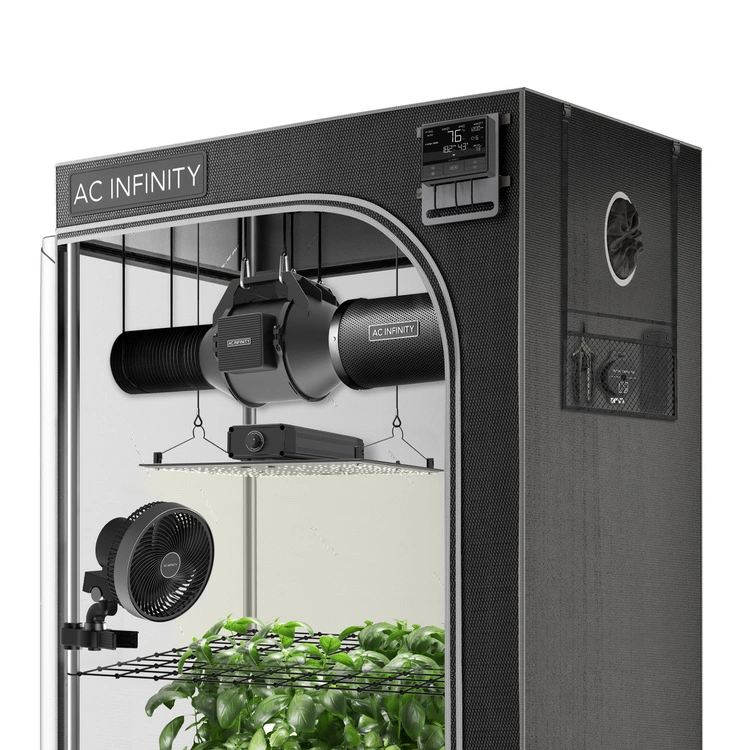

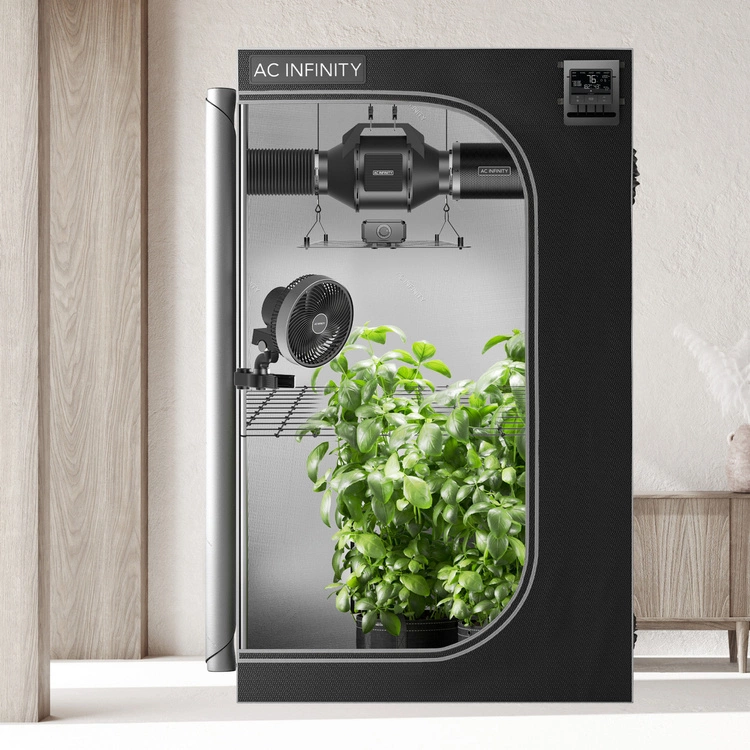

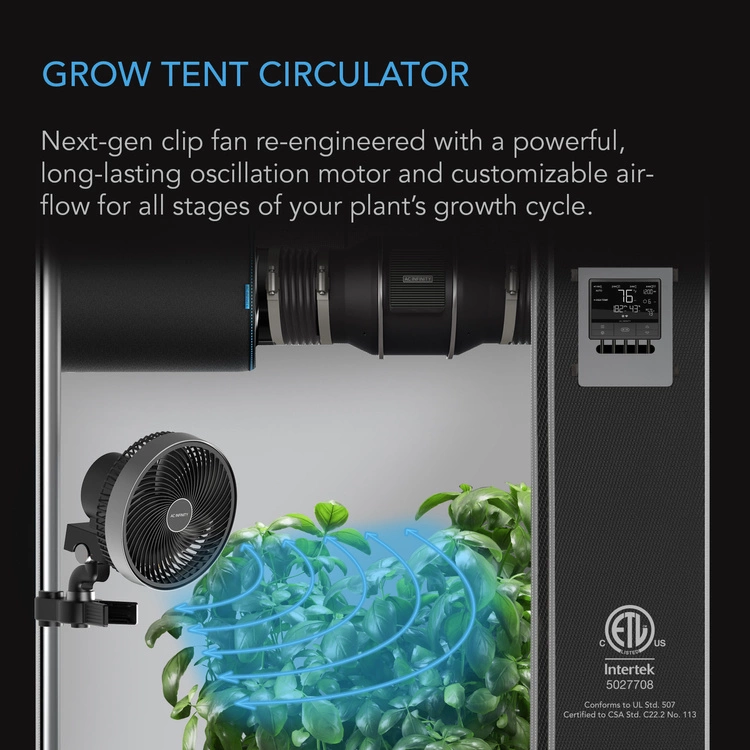

An advance grow tent system with intelligent controls to manage your grow environment and ensure ideal growing conditions for a successful harvest. The inline fan, carbon filter, and ducting manage your tent’s climate conditions by routing heat, humidity, and odor away from it. Air is circulated via the next-gen clip fan with oscillation range control, re-engineered to provide tailored, custom airflow to your plants over a longer period of time. Algorithmically selected and arranged LM301H diodes on the grow light board emits powerful LED lighting over wide coverage to simulate natural sunlight and optimize growth. These devices are housed in a high-density oxford grow tent, featuring a sturdy steel frame and Mylar walls to create a climate-controlled grow space.
INTELLIGENT PROGRAMMING

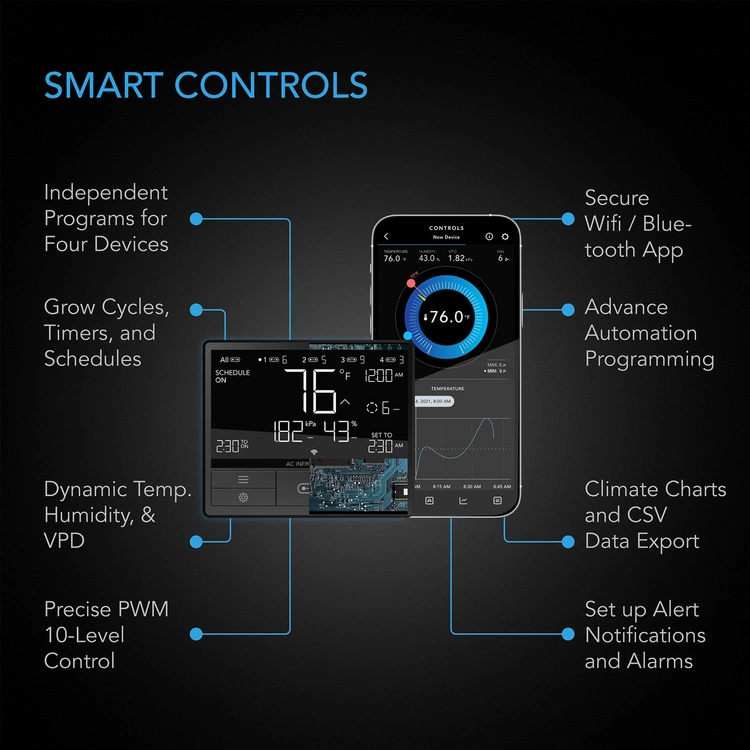

Integrating these components is the CONTROLLER 69 PRO, engineered to provide each device with shared or independent programming. This central control unit can set dynamic programs to activate your grow devices in response to VPD (vapor pressure deficit) levels, in addition to temperature and humidity, to help you further dial into your ideal growing space. Timer, cycle, and schedule modes add custom on-demand activation for a variety of indoor growing uses. Securely connect to the AC Infinity app via WiFi to remotely access your indoor grow system from anywhere outside the boundaries of your home, unlocking advance programs, alerts, notifications, and historical charts.
COMPLETE KIT
This package assembles all the essential components to help you quickly start your indoor grow while eliminating the guesswork of purchasing them individually.

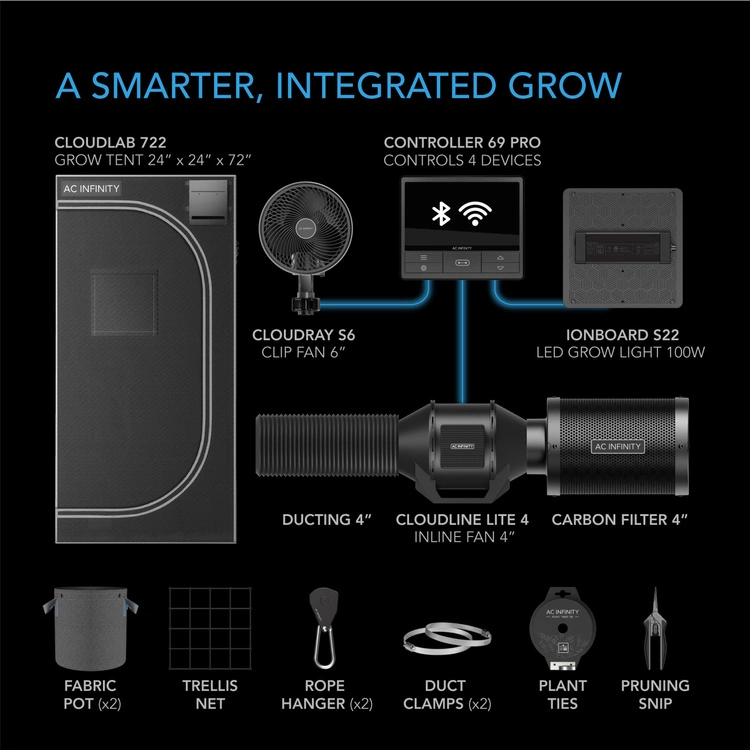

The full grow tent kit will include the following:
- CLOUDLAB 722 – Advance Grow Tent 24”x24”x72” (x1)
- CONTROLLER 69 PRO – Grow Tent Controller (x1)
- CLOUDLINE LITE 4 - Inline Fan 4" (x1)
- IONBOARD S22 – LED Grow Light Board 100W (x1)
- CLOUDRAY S6, Gen 2 – Oscillating Circulation Clip Fan (x1)
- Carbon Filter 4” (x1)
- 4” Flexible Ducting, 8’ Long (x1)
- Hanging Straps (x2)
- Rope Clip Hangers (x2)
- 4” Steel Clamps (x2)
- 5’ Duct Tape (x1)
- Hook and Loop Ties (x10)
- 6’ UIS Male to Male Controller Cord (x1)
- 6’ L-Shaped UIS Male to Male Controller Cord (x1)
- 5-gallon Fabric Pots (x2)
- Elastic Trellis Netting 2x2’ (x1)
- Black Wire Twist Ties (x1)
- Micro-tip Pruning Shears (x1)
Product Identification
- Manufacturer: AC Infinity Inc.
- Product Name: Advance Grow System B22
- Product Model: AC-PKB22
Product and Mounting Dimensions - Grow Tent
Tent Dimensions: 23.62" x 23.62" x 70.86" (60 x 60 x 180 cm)
Duct Opening Sizes: 4", 6"
Viewing Window Size: 9.84 x 9.84 in. (25.0 x 25.0 cm)
Side Intake Hole Size: 5.90 x 14.17 in. (15.0 x 36.0 cm)
Mounting Strap Length: 5.51 in. (140.0 cm)

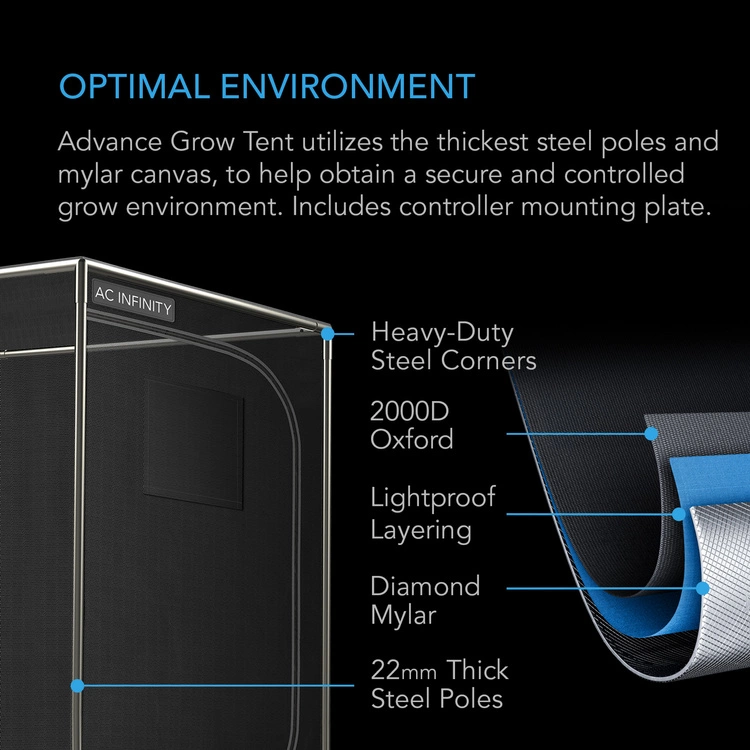

Product Performance and Technical Specs - Grow Tent
Outer Tent Material: Oxford
Inner Tent Material: Mylar
Pole Material: Steel
Pole Thickness: 22 mm
Beam Weight Capacity: 150 lbs.

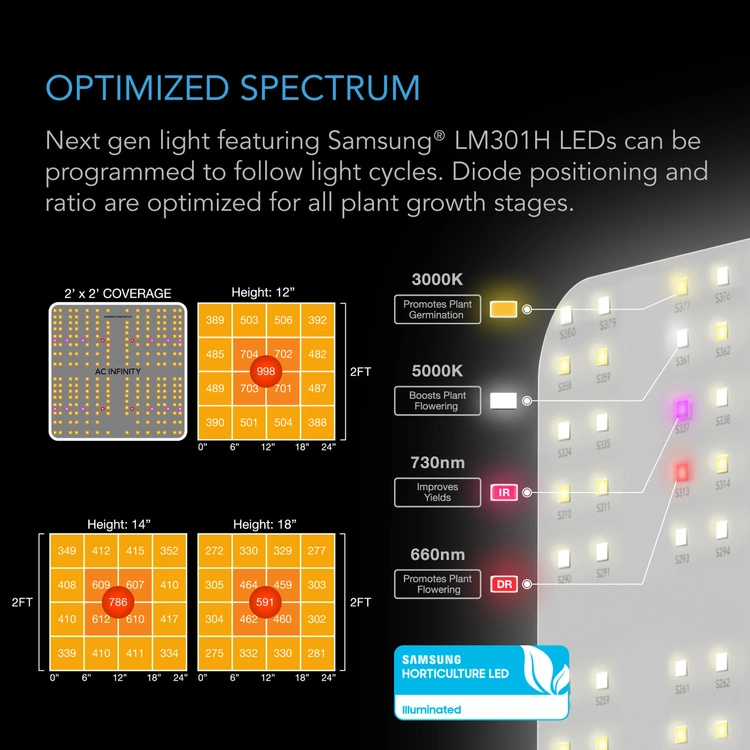

Product Performance and Technical Specs - LED Grow Light
- Coverage: 60X60 cm
- Diodes: Samsung LM301H
- LED Chip Count: 272
- LED Driver: AC Infinity Proprietary Driver, Model GTS-100
- Efficiency: 2.7 µmol/j
- PPFD: 998
- Spectrum: 660nm, 730nm, 3000K, 5000K
- Wattage: 100 W
- Voltage: 100-277V AC
- Frequency: 50/60 Hz
- Amps: 0.94 A @ 120V | 0.47 A @ 240V | 0.40 A @ 277V
- Controller: Digital Dimming Timer
- Operating Humidity 35 to 85% RH
- Operating Temperature: 32 to 140°F
- Life Expectancy: 50,000 Hours
Product Performance and Technical Specs - Carbon Filter
- Flange Material: Aluminum
- Flange Design: Reversible
- Mesh Materia:l Galvanized Steel
- Carbon Type: Australian Virgin RC412
- Carbon Grade: 1200+ IAV
- Carbon Thickness: 38 mm
- Maximum Airflow: 360 CFM
