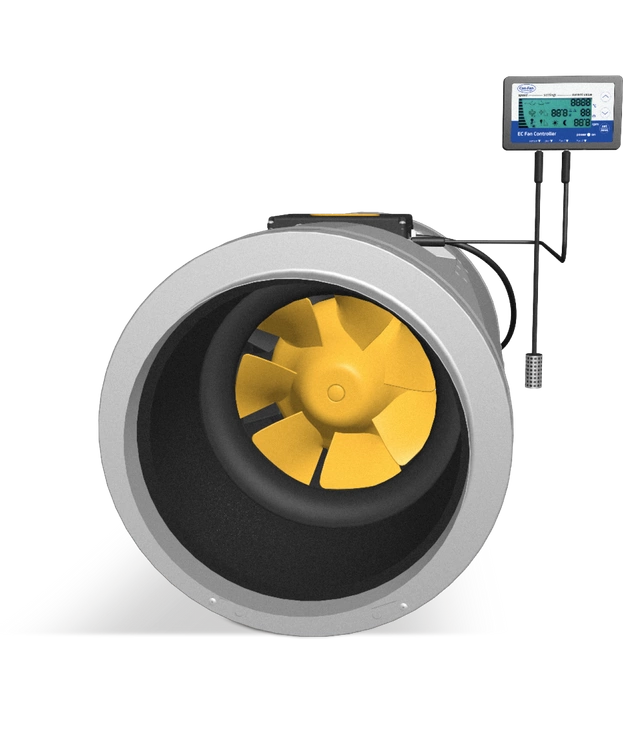

Duct fan Can Fan Q-Max EC speed fi 315mm 2850 m3 / h - speed controllable
About Can fan Q-Max Series
Q-Max EC with EC technology is a turbine or mixed flow fan with the highest aerodynamic efficiency and the best energy consumption level due to the new EC technology motor, together with the 3D rotor stator system. Q-Max EC is a Max Fan Pro Series EC motor integrated in a Silencer. The powerful but silent operation of Q-Max EC is the result of the uniform turbulence free air flow and the continuous, totally noise free plug and play Can-Fan EC Controller for complete control. Up to 10 EC motor fans can be connected and controlled at once using the Can-Fan EC Controller.
Q-Max EC is German made, compact, easy to use and easy to clean. Integrated hangers provide for an easy installation. The entire range meets the mandatory ErP requirements for all EU marketed fans. For efficient performance with the best possible results, we strongly recommend the use of Q-Max EC together with Can Filters.
Q-Max EC technical specification:
New engine with EC technology
Quiet, efficient and powerful
Very quiet, using less electricity
Galvanized metal housing
Jack connector (for controller)
Foam padded muffler for maximum noise reduction
Quiet, stepless EC motor of new technology

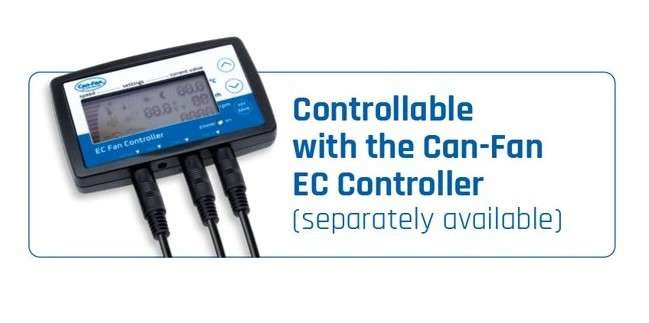

Controllable via EC LCD fan controller or basic controller (NOT INCLUDED!)
In combination with the CAN controller for EC fans, you can control up to 10 EC fans at the same time!
Model: Q-MAX EC 315/2850
Material: Metal
Weight: 18.5 kg
Diameter (connection flange): 315 mm
capacity max. : 2850 m3/h
Current: 2A
Power: 287W
Speed controller allowed: yes (available separately in our store)
| power (W): | 287 |
| Flange (mm): | 315 |
| Airflow regulation: | yes |
| temperature regulation: | no |
| Maximum fan performance (m3 / h): | 2850 |
| Real power consumption (W): | 460 |
| Loudness (dB): | 76 |
