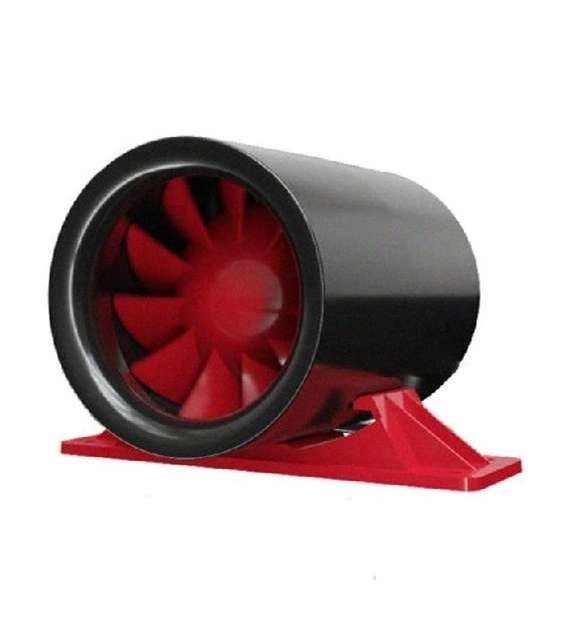

The Axial-quiet 100 Duo two-speed axial duct fan from Black Orchid has the highest efficiency in its class while maintaining a low noise level.
The fan is small and very flexible in installation. Perfect for mounting directly on a carbon filter or in the sleeve of a grow tent. The housing and impeller are made of high-quality, durable plastic. The exhaust plug is equipped with specially designed air flow rectifiers to reduce air turbulence, noise levels and increase air pressure. The design of the fan impeller increases efficiency and ensures quiet operation of the fan.
Technical data:
Model: Axial-quiet 100k DUO
Entrance: Ø 100 mm
Output: Ø 100 mm
Maximum efficiency (gear I/II): 75 / 100 m³/h (performance change by moving the cables on the cube)
Power supply: 220-240V/50HZ
Power (gear I/II): 4.5/7.5W
Amperage (gear I/II): 0.029/0.049A
Volume (gear I/II): 22dBA / 25dBA
Maximum operating temperature: +1...+40 °C
Security standard: IPX4
Material: ABS plastic
The fan does not have a power cord, it is worth purchasing it separately.
The fan is small and very flexible in installation. Perfect for mounting directly on a carbon filter or in the sleeve of a grow tent. The housing and impeller are made of high-quality, durable plastic. The exhaust plug is equipped with specially designed air flow rectifiers to reduce air turbulence, noise levels and increase air pressure. The design of the fan impeller increases efficiency and ensures quiet operation of the fan.
Technical data:
Model: Axial-quiet 100k DUO
Entrance: Ø 100 mm
Output: Ø 100 mm
Maximum efficiency (gear I/II): 75 / 100 m³/h (performance change by moving the cables on the cube)
Power supply: 220-240V/50HZ
Power (gear I/II): 4.5/7.5W
Amperage (gear I/II): 0.029/0.049A
Volume (gear I/II): 22dBA / 25dBA
Maximum operating temperature: +1...+40 °C
Security standard: IPX4
Material: ABS plastic
The fan does not have a power cord, it is worth purchasing it separately.
Brand
Entity responsible for this product in the EU
F.H.U. Goodlink.pl Daniel SpyraMore
Address:
Św. Walentego 88Postal code: 48-220City: ŁącznikCountry: PolandE-mail: office@growbox.pl
Maximum fan performance (m3 / h)
100
power (W)
7,5
Optimal performance (m3/h)
75
Loudness (dB)
25
Flange (mm)
100
Airflow regulation
yes
temperature regulation
no
Real power consumption (W)
22
