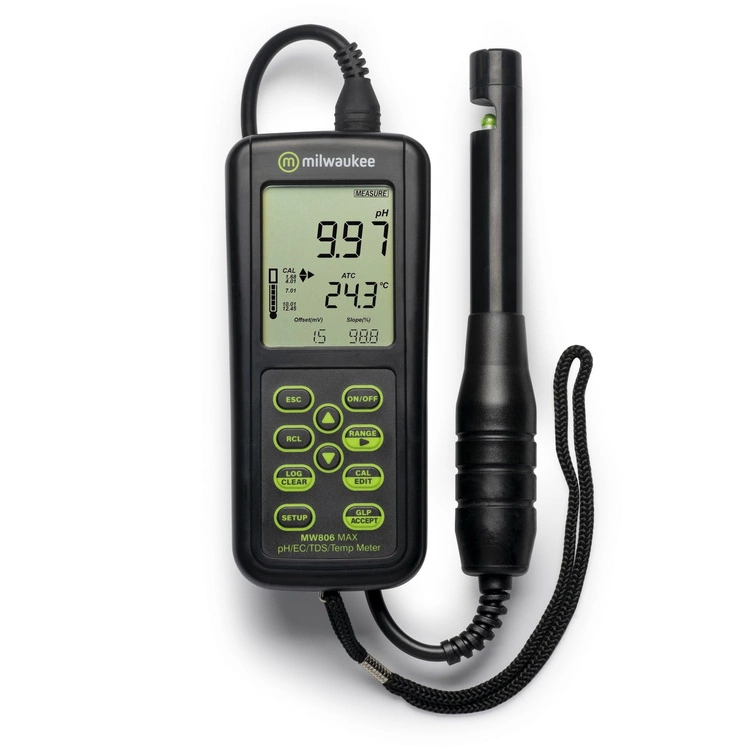

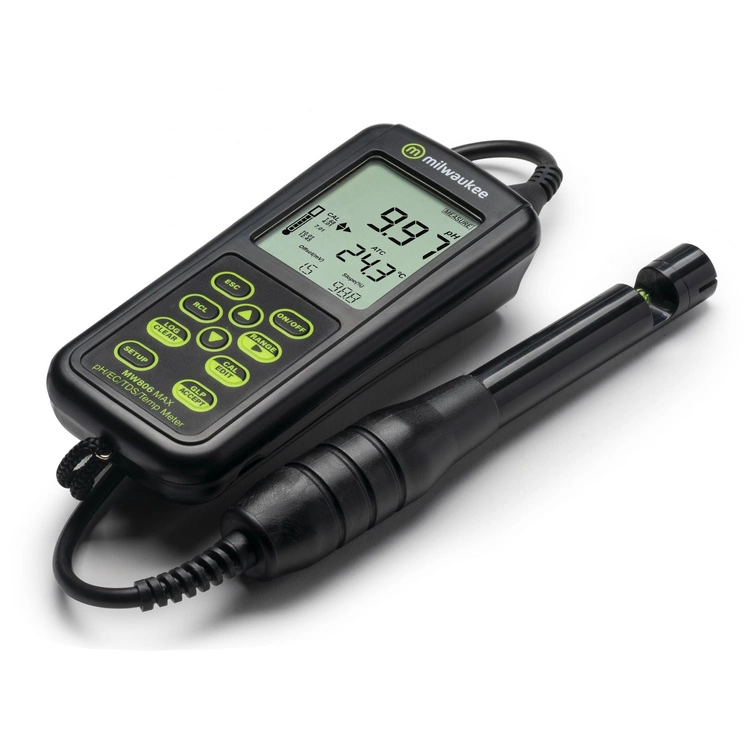

Milwaukee MW806 PRO – Professional 4-in-1 Meter: pH, EC, TDS, and Temperature with ATC
The Milwaukee MW806 PRO is a modern, multifunctional meter designed for precise measurement of pH, electrical conductivity (EC), total dissolved solids (TDS), and temperature in a single device. Featuring ATC (Automatic Temperature Compensation) technology, it ensures accurate readings regardless of temperature fluctuations. It is an ideal solution for professionals and hobbyists engaged in hydroponics, aquaculture, agriculture, or the food industry.
Product Benefits:
- 4 measurements in one device – precise monitoring of pH, EC, TDS, and temperature.
- Automatic Temperature Compensation (ATC) – ensures accuracy regardless of environmental conditions.
- Easy calibration – one- or two-point calibration for enhanced precision.
- Water-resistant design – ideal for use in demanding conditions.
- Fast and precise measurements – large LCD screen for easy reading.
- Ergonomic construction – compact, lightweight, and comfortable to use.
Technical Specifications of Milwaukee MW806
Measurement Range:
- pH: -2.00 to 20.00 pH
- EC: 0.00 to 20.00 mS/cm
- TDS: 0.00 to 10.00 ppt (g/L) (up to 16.00 ppt with a TDS factor of 0.80)
- Temperature: -20.0 to 120.0 °C (-4.0 to 248.0 °F)
Resolution:
- pH: 0.01 pH
- EC: 0.01 mS/cm
- TDS: 0.01 ppt (g/L)
- Temperature: 0.1 °C / 0.1 °F
Accuracy (at 25°C / 77°F):
- pH: ±0.01 pH
- EC / TDS: ±2% of full scale
- Temperature: ±0.5 °C / ±0.9 °F
Calibration:
- pH: Automatic, up to 5 points (7 standard buffers: 1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45 + 2 custom buffers)
- EC / TDS: Single-cell calibration, 3 standards (1413 µS/cm, 5.00 mS/cm, 12.88 mS/cm), single-point offset: 0.00 mS/cm
- Temperature: Factory-calibrated
Temperature Compensation:
- Automatic (ATC): -20 to 120 °C (-4 to 248 °F)
- Manual (MTC): -20 to 120 °C (-4 to 248 °F)
Additional Parameters:
- Conductivity temperature coefficient: 0.00 to 6.00%/°C (for EC and TDS), default: 1.90%/°C
- TDS factor: 0.40 to 0.80, default: 0.50
Memory and Data Logging:
- Memory: Up to 1000 records in 100 batches
- Logging modes: On-demand (up to 200 logs), stability-based (up to 200 logs), interval logging (up to 1000 logs)
- Data export: micro USB
Power Supply:
- Battery: 3x AA 1.5V (alkaline, included)
- Battery life: Approximately 200 hours
Operating Conditions:
- Temperature range: 0 to 50°C (32 to 122°F)
- Humidity: Up to 95% RH
Housing and Dimensions:
- Protection rating: IP67 (waterproof)
- Dimensions: 200 x 85 x 50 mm (7.9 x 3.3 x 2.0")
- Weight: 260 g (0.57 lb)
Probe Specifications:
- pH range: 0 to 13.00 pH
- Temperature range: 0.0 to 60.0 °C (32.0 to 140.0 °F)
- EC electrodes: 2x graphite
- Reference (pH): Single, Ag/AgCl

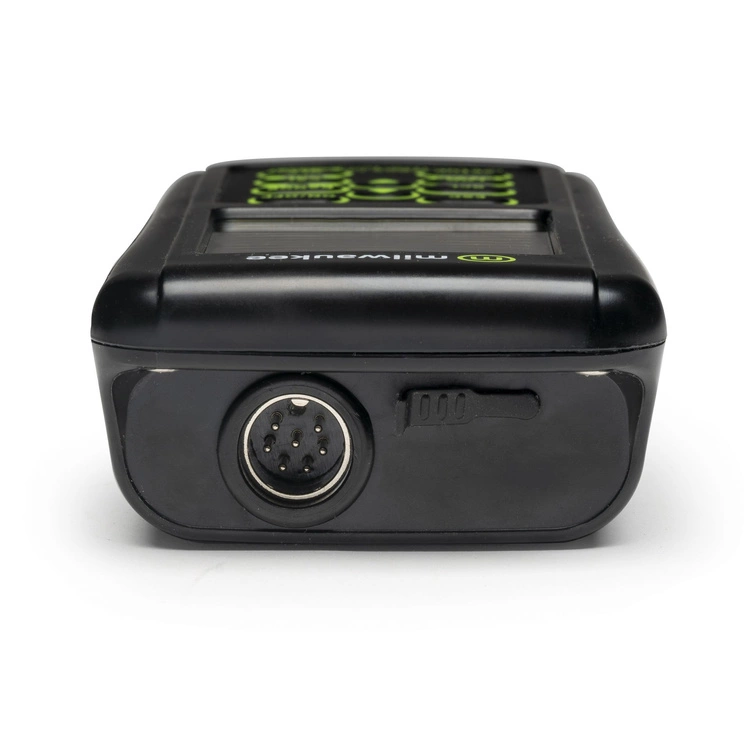

- Connector: DIN
- Cable length: 1 m (3.3')
The Milwaukee MW806 PRO is a reliable, all-in-one device that simplifies monitoring of key parameters in various environments, ensuring optimal water quality and the health of plants and aquatic organisms.
