AC Infinity UIS™ Lighting Adapter Type-B, for RJ11/12 Connector Lights with Resistor Dimmers - the adapter allows you to connect third-party lamps to controllers and the UIS ecosystem from AC Infinity brand
- Enables UIS™ controllers to work with RJ11 and RJ12 connector grow lights with resistor dimmers.
- Control previous gen grow lights using resistor dimming technology. Compatibility list coming soon.
- Automate light cycles, scheduling, and climate triggers; unlock data graphs and alert notifications via our app.
- Monitor and control your grow on your phone from anywhere with our latest WiFi-enabled UIS controllers.
- Our ecosystem of controllers and grow equipment work together to create your plant's ideal environment.
Product Description
An adapter dongle designed to connect our UIS controllers to grow lights from other manufacturers. The Type-B adapter works only with grow lights with RJ11 and RJ12 connectors that use resistor dimmers; see below for compatibility list. By connecting your lighting fixture to one of our controllers, you can automate it with light cycles, scheduling, and dynamic responses to temperature and humidity. It will also join the UIS platform of smart controllers and grow equipment, all working together to create the ideal environment for your plants. Our WiFi-enabled smart controllers allow you to monitor and control your grow on your phone from anywhere while providing data charts and alert notifications via the AC Infinity app. Once your first light has connected to the controller, you can control additional RJ11 or RJ12 connector lights using that manufacturer's daisy chain method. Includes a 10-foot RJ11/12 extension cord. Compatible with our controllers with UIS connectors like CONTROLLER 69, CONTROLLER 69 WiFi and CONTROLLER 69 PRO; an additional UIS device is required to power the controller.
Light Compatibility
Most RJ11 and RJ12 connector grow lights using the resistor dimming standards can work with the Type-B lighting adapter. However, each light manufacturer's dimming protocol is different so some may have a limited dimming range with our controllers. Lights that have spectrum control or utilize a PWM or voltage protocol are not compatible. See our other lighting adapters or the UIS control plug if your light is not compatible. A firmware update via the AC Infinity app may be required for your UIS controller to work with this dongle. Compatible lights include, but are not limited to:
- CHILLED TECH - GROWCRAFT Series that are compatible with their Push-Lock Dimmer to RJ12 Adapter (Model GC-DIM-TM-RJ12-1).
- HLG - All models with RJ 0-10V Dimming box, including those with MEANWELL drivers.
- MARS HYDRO - FC, FC-E, SP, and TS Series Models with MOSO/MEANWELL drivers. See our Type-A adapter if your model has a MARS HYDRO driver.
- MIGRO - ARAY Series
- SPIDER FARMER - SE and SF Series Models with MOSO/MEANWELL drivers. See our Type-A adapter if your model has a SPIDER FARMER driver.
- MORE MODELS ADDED SOON!
All BRANDS listed above are registered trademarks of their respective companies. AC Infinity does not claim any affiliation with these brands.

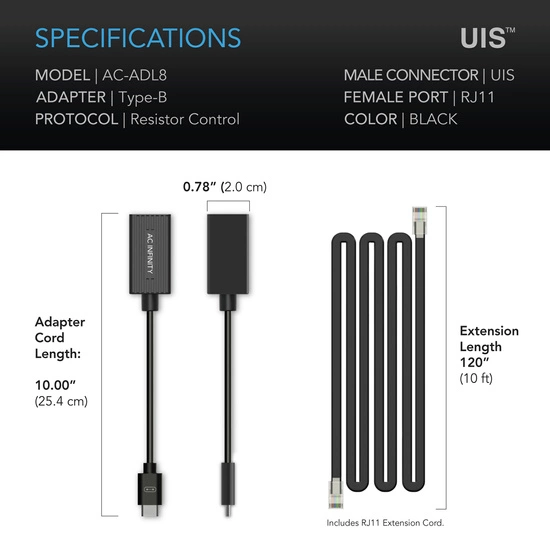

SPECIFICATION:
| Product Identification | |
| Manufacturer | AC Infinity Inc. |
| Product Name | RJ11/12 to UIS Port Adapter, Type-B |
| Product Model | AC-ADL8 |
| Product Dimensions | |
| Total Length | 10 in. (25.4 cm) |
| Molex Depth | 0.30 in. (0.8 cm) |
| UIS Depth | 0.26 in. (0.7 cm) |
| Product Performance and Technical Specs | |
| Male End | UIS |
| Female End | RJ11, RJ12 |
