CO2 Monitor and Controller AQM-419 - CO₂, Temperature, and Humidity Monitor with Precision CO2 Level Control

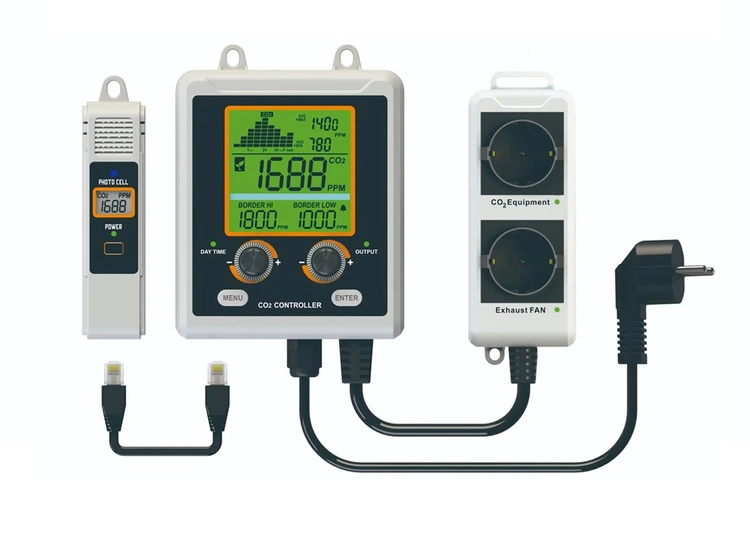

The AQM-419 CO₂ Monitor and Controller is a high-precision device that monitors and regulates CO2 levels, temperature, and humidity, perfect for both indoor environments and horticultural use. It features dual outputs for connecting a CO2 tank and a fan, ensuring optimal air quality and plant growth conditions.

The AQM-419 is an advanced device designed for monitoring and controlling CO2 levels, temperature, and humidity in various environments. Equipped with a precise NDIR sensor, it provides accurate and reliable readings, ideal for horticultural applications as well as indoor spaces.

Key Features:

• Automatic Day/Night Detection: In Plant Mode, the sensor automatically detects day or night, optimizing CO2 levels accordingly.
• CO2 Tracking and Charts: Ability to set CO2 charts with adjustable time scales for analyzing historical CO2 levels.
• Dual-Channel NDIR Sensor: Provides low-drift measurements.
• Green Backlight Display: Enhances visibility in various lighting conditions.
• Easy Calibration: Simple calibration process for CO2, temperature, and humidity.
• Audible Alarm: Alerts for high CO2 levels.
• Temperature and Humidity Monitoring: Continuous tracking of environmental conditions.

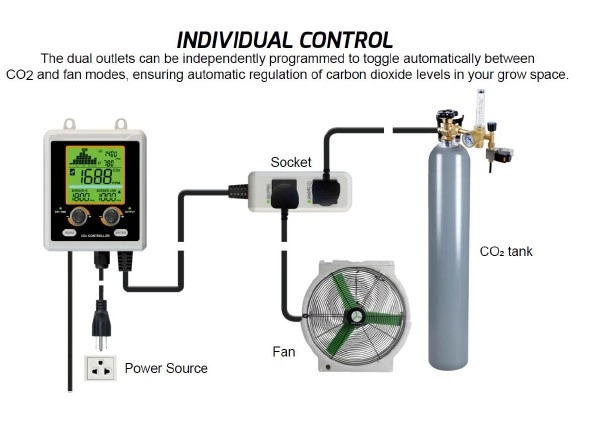

• Dual Output Control: Functions for controlling both a fan and CO2 device in Plant Mode.

Technical Specifications:

• CO2 Measurement Range: 0-5000 ppm
• Accuracy: ±50 ppm or ±5% of reading, whichever is greater
• Operating Temperature Range: 0°C to 50°C
• Storage Temperature Range: -20°C to 60°C
• Controller Unit Dimensions: 195 mm x 145 mm x 44 mm
• Sensor Unit Dimensions: 153 mm x 33 mm x 27 mm
• Weight: 700 g
• Power Supply: AC 100-240 V

Operating Instructions:

1. Power On: Connect the cable to both ends of the CO2 controller and remote sensor, then plug the power cord into a wall outlet. The device will initiate a 15-second countdown.
2. Measurements: The device updates readings every four seconds. Avoid holding the CO2 sensor close to your face to prevent exhalation from affecting readings.
3. CO2 Chart Settings: Allows users to analyze historical CO2 levels and make adjustments as needed.
4. Modes: In Plant Mode and Human Mode, the device automatically controls outputs based on set CO2 threshold values.

Applications:

• Ideal for horticulture, where precise CO2 control is crucial for plant growth.
• Suitable for indoor environments to maintain appropriate CO2, temperature, and humidity levels for human comfort.

Note:

• The package does not include a fan or CO2 tank.
• The device is not intended for workplace CO2 hazard monitoring or as a medical monitor in health institutions.

With the advanced AQM-419 CO2 Monitor and Controller, you can ensure optimal growth conditions for your plants and maintain a comfortable indoor environment by continuously monitoring key environmental parameters in real-time.
