AC INFINITY IONFRAME EVO4, SAMSUNG LM301H EVO FULL SPECTRUM - COMMERCIAL LED GROW LIGHT, 300W, coverage: vegetative 120x120 cm, flowering 90x90 cm
- Features Samsung LM301H EVO LEDs each rated at 3.14 µmol/J PPE, the highest efficiency of LM301B, LM301H, and Bridgelux 3030 chips.
- Programmed with schedule controls, sunrise/sunset dimming, and 10 brightness levels; UIS™ platform-compatible for WiFi app control.
- Bar-style fixture with algorithmically spaced diodes optimized for even coverage, deep canopy penetration, and hotspot reduction.
- Passive cooling LED driver is removable to balance heat dissipation; also supports daisy-chaining with up to 80 grow lights.
- 4 x 4 ft. Veg. Coverage | 3 x 3 ft. Flower Coverage | Samsung LM301H EVO Chips | 896 Diodes | 300W | 1819 PPFD | ETL Cert. 5021417
NEW GENERATION OF LED GROW LIGHTS

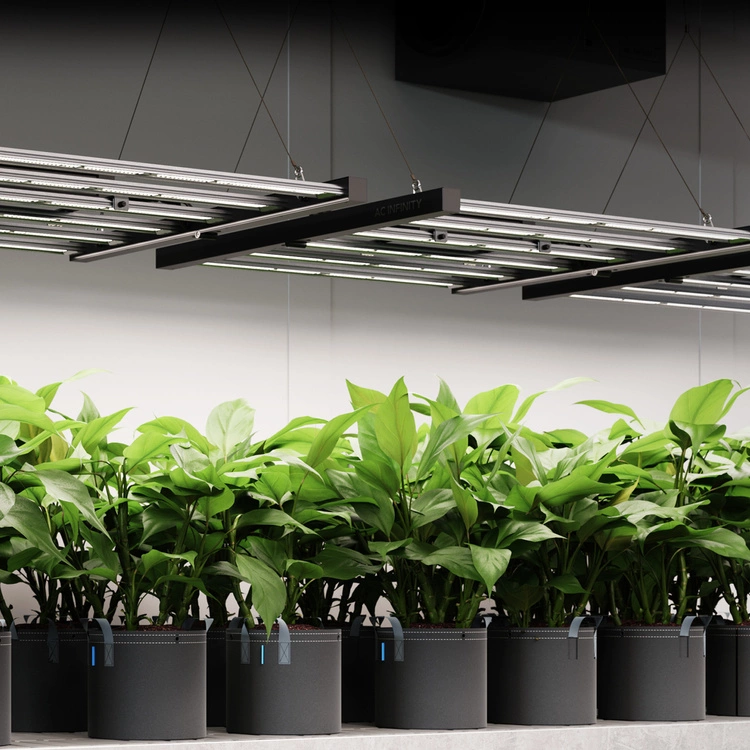

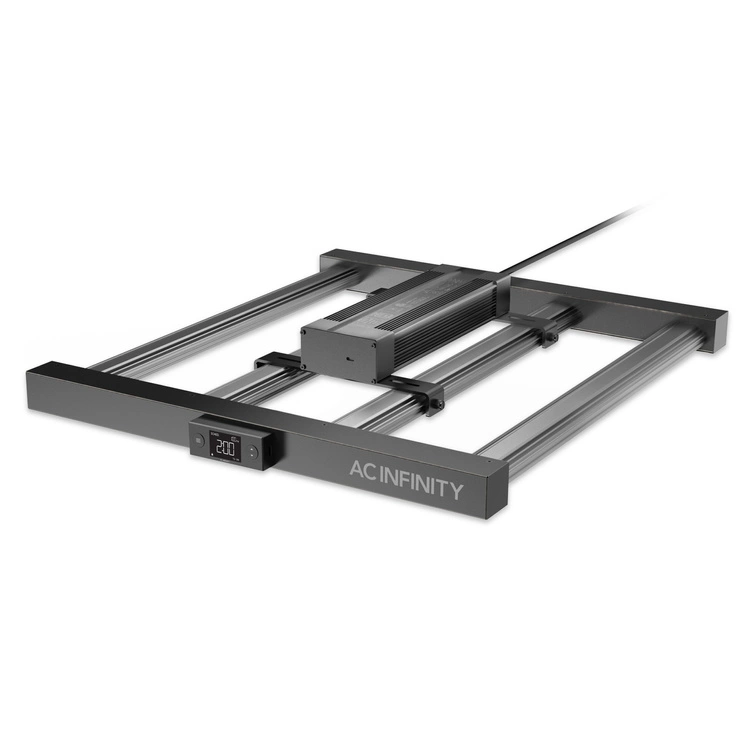

An indoor plant grow light designed for grow tents and large grow spaces to improve your plant's growth rate and its yields. Utilizes Samsung LM301H EVO diodes that are algorithmically spaced on a bar-style form factor to evenly distribute lighting coverage while diminishing hotspots. Its modular design enables you to remove the driver to remotely mount it away from this fixture and balance heat dissipation. This heat dissipation is supported by its steel and aluminum build, which enables magnetic mounting and is IP-65-rated to withstand humid environments. This grow light meets ETL standards (certificate #5021417) for electrical appliance safety, ensuring secure use in lighting applications. The included smart controller features schedule programming and daisy-chain support to connect more bar LED grow lights in a linear arrangement by using splitter dongles (sold separately). This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.
INDUSTRY-LEADING LED CHIPS

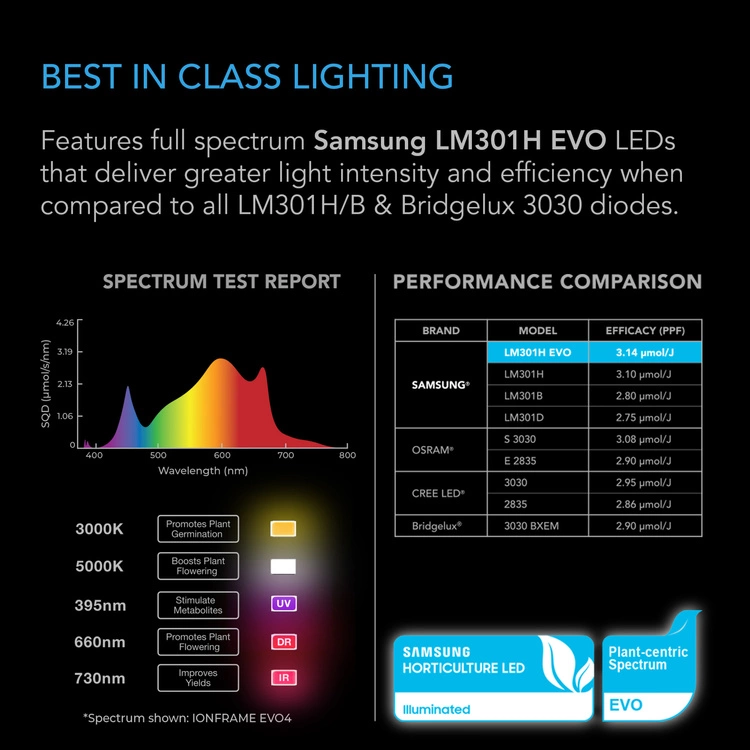

Each IONFRAME light features genuine Samsung LM301H EVO diodes, the latest in horticulture lighting technology that emits intense brightness at greater efficiency. This performance is superior to leading Samsung LM301H and LM301B LEDs, as well as Bridgelux 3030, and other previous-generation LEDs. EVO diodes help improve plant growth by emitting greater light quality and more light output per diode, with a higher blue spectrum and greater efficiency when compared to non-EVO diodes. The IONFRAME EVO is supported by an array of (4) 395 nm UV diodes, (28) 660 nm and (4) 730 nm OSRAM far-red diodes to complete its full spectrum light output.

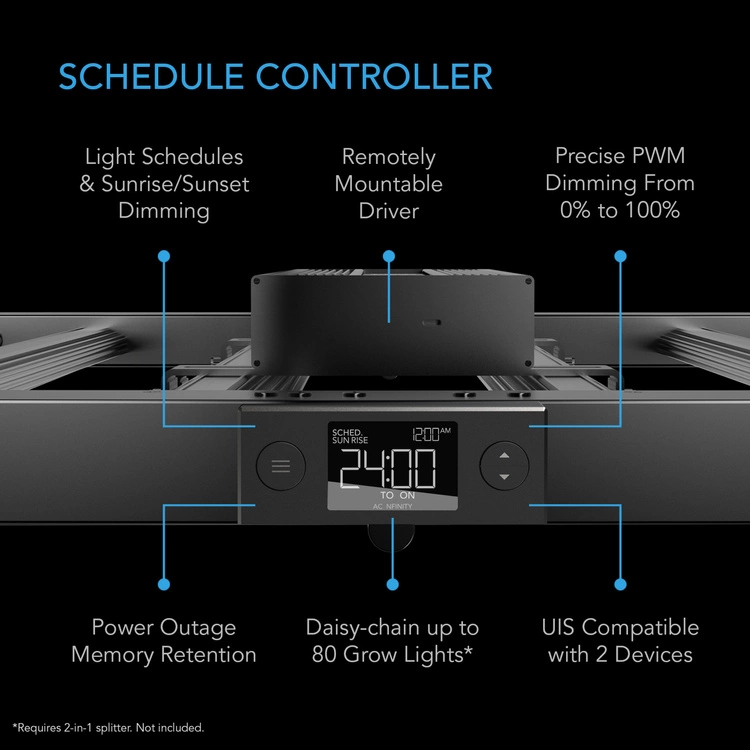

SCHEDULE AND BRIGHTNESS CONTROLS

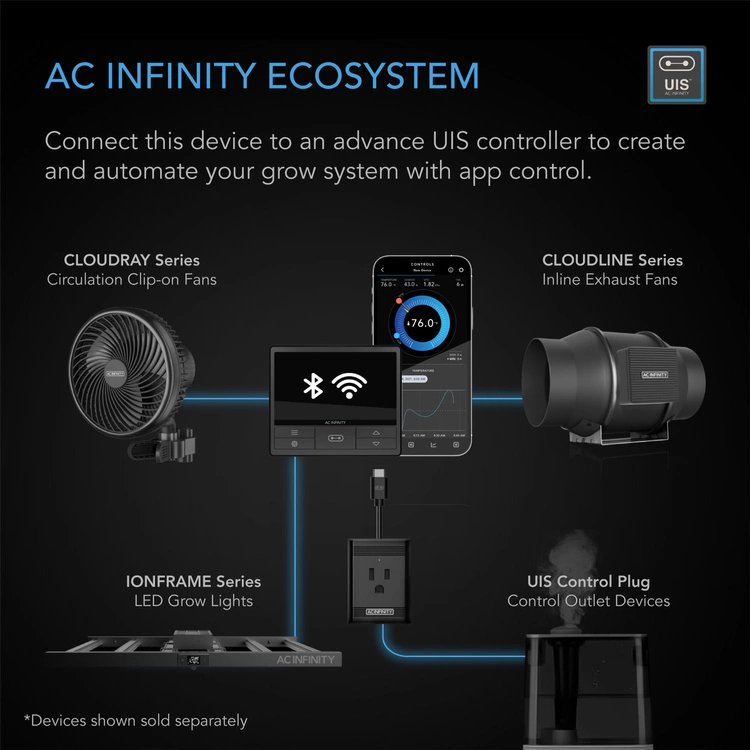

The included schedule controller can automatically adjust light based on the time of day. It features 10 light intensity levels and a scheduling mode that will cyclically activate this grow light. Customize this daily cycling with an innovative sunrise and sunset setting that gradually brightens and dims the lighting to accurately replicate the sun's movement. Use this grow light with an advance UIS controller like CONTROLLER 69 PRO to fully automate it by integrating it into the UIS platform. This will enable further access to remote control over WiFi and advance programming like automation and grow recipes when connecting to the AC Infinity app.

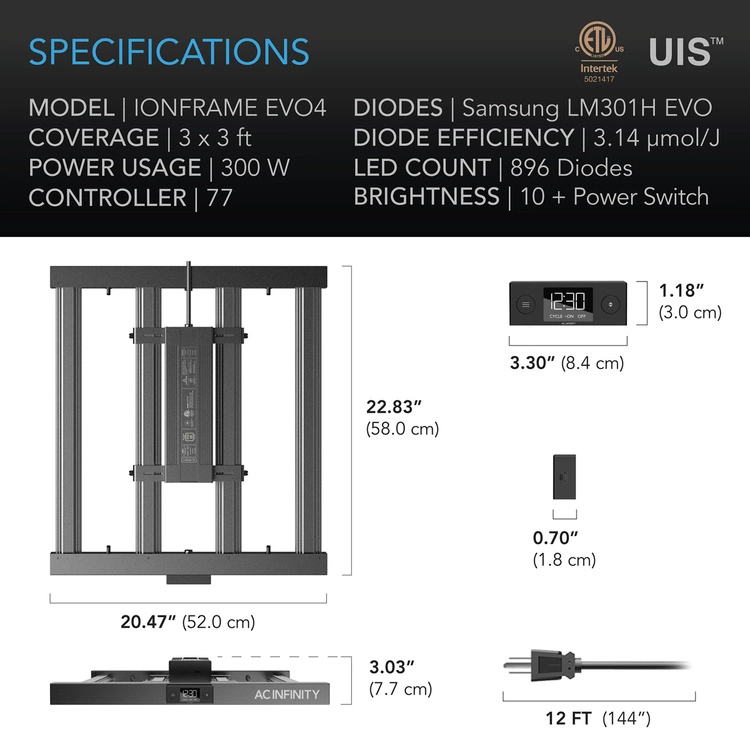

SPECIFICATION:
| Product Identification | |
| Manufacturer | AC Infinity Inc. |
| Product Name | IONFRAME EVO4 |
| Product Model | AC-IF4K |
| Product and Mounting Dimensions | |
| Light Dimensions | 20.47 x 22.83 x 2.99 in. (52.0 x 58.0 x 7.6 cm) |
| Driver Dimensions | 7.16 x 1.57 in. (18.2 x 4.0 cm) |
| Product Performance and Technical Specs | |
| Coverage | 3 x 3 ft. (90x90 cm) |
| Diodes | Samsung LM301H EVO |
| Spectrum | 395nm, 660nm, 730nm, 3000K, 5000K |
| Chip Count (Total) | 896 |
| Chip Count (EVO 3000K) | 360 |
| Chip Count (EVO 5000K) | 500 |
| Chip Count (Seoul 395 nm) | 4 |
| Chip Count (OSRAM 660 nm) | 28 |
| Chip Count (OSRAM 730 nm) | 4 |
| LED Driver | SOSEN-320W |
| Efficiency (Single Diode) | 3.14 µmol/J |
| PPFD | 1819 PPFD |
| Wattage | 300 W |
| Voltage | 100-277V AC |
| Frequency | 50/60 Hz |
| Amps | 3.0 A |
| Controller | Schedule Controller |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Waterproof Rating | IP-65 |
| Life Expectancy | 50,000 Hours |
