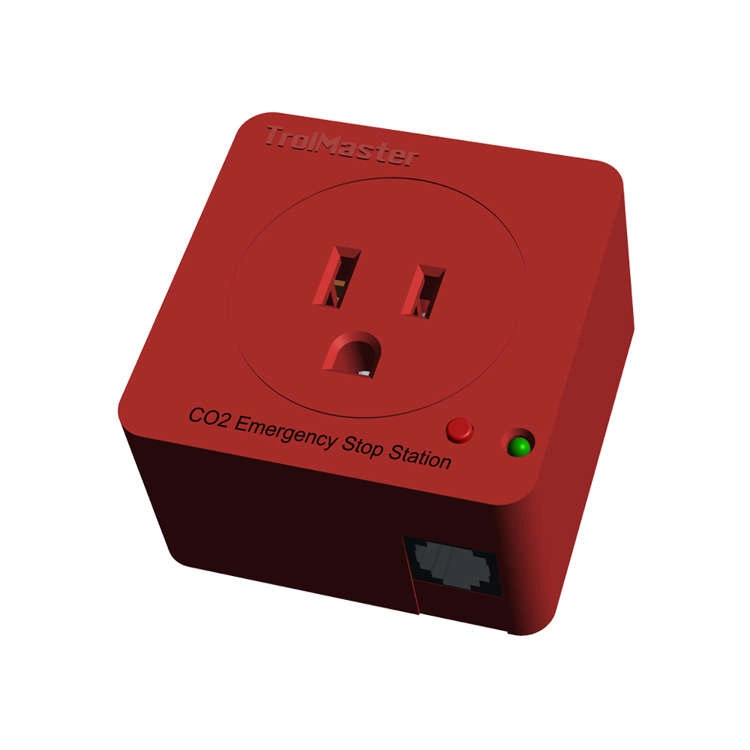

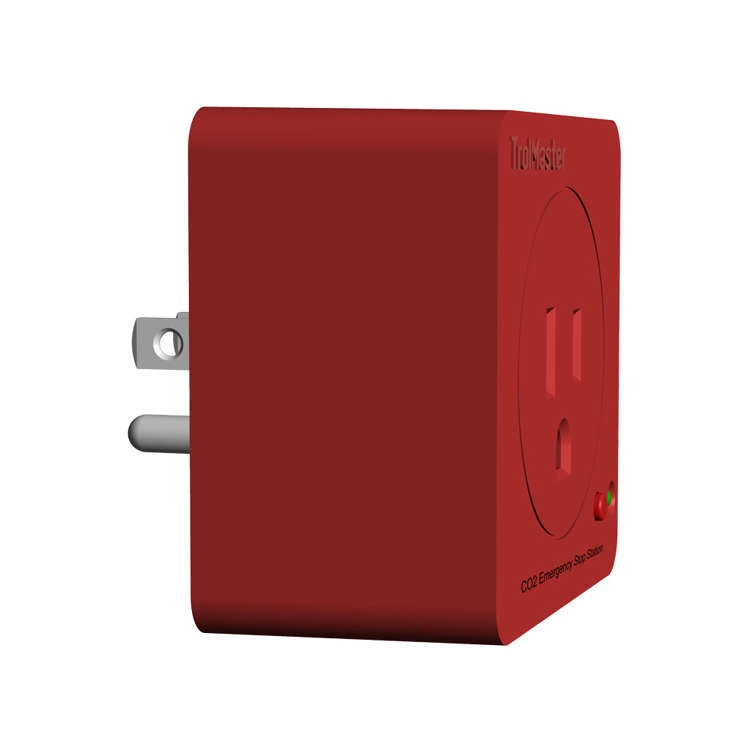

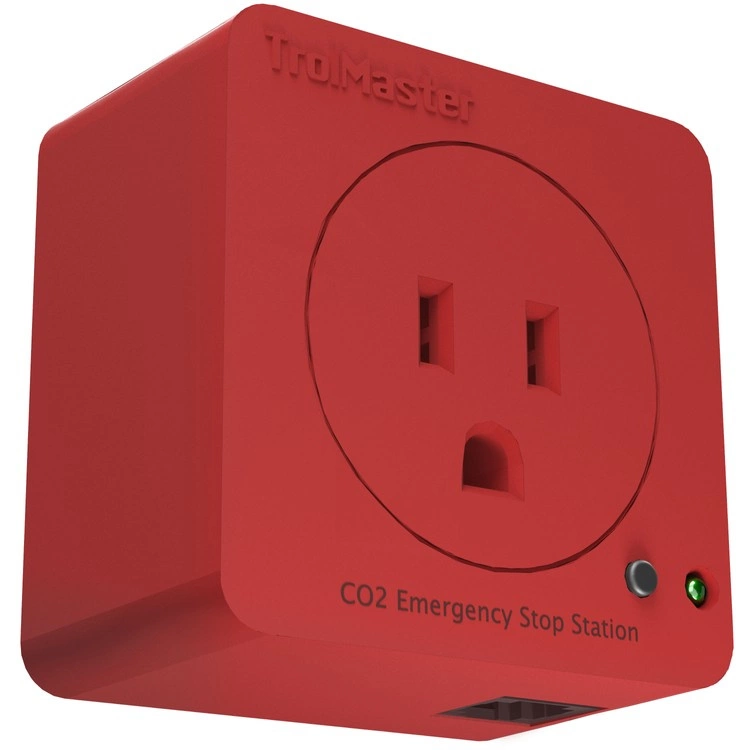

The DSE-1 CO2 Emergency Stop Station provides a simple method to shut off the CO2 supply when any fault or high CO2 level is detected. It is a 120V controlled outlet that supplies the power to CO2 solenoid valves in normal operation .
The Carbon-X will then automatically shut off DSE-1 power if any fault or high CO2 level is detected within any of the installed CO2 sensors. If the DSE-1 loses communication with the Carbon-X, the power supply will also be disabled.
LED status:
* Blinking green FAST: If the LED is blinking quickly, that means the module has not been addressed to the controller OR that module does not have a good connection to the controller. *Pressing the small button on the module will address/link the module when first installed.
* Blinking green SLOW: If you see a slowly blinking green LED, that means the module is addressed and connected to the controller, and the module is currently turned OFF.
* SOLID green: If you see the LED is on solid (no blinking) that means the modules are addressed, connected and currently turned ON.
* Blinking red: If you see the LED change to blinking red, that means the module has been overloaded. To reset the overload unplug the module from the power.
