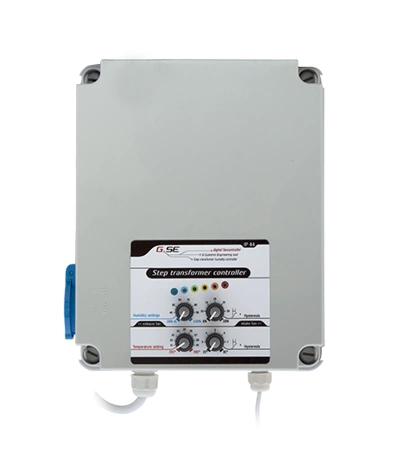

It regulates the temperature and humidity by adjusting the fan speed. Two separate knobs are used to regulate the temperature and humidity levels. Temperature is expressed in degrees Celsius and humidity in percent (rh).
The other two knobs are used to set the hysteresis (sensitivity) of temperature and humidity. A characteristic feature of this driver (step transformer) is that its fan does not make a "humming" noise at lower revs. This significantly improves our comfort and even allows you to sleep in the same room as the working device.
The step transformer controls the speed automatically on a 6-point scale up or down depending on the temperature (its operation is shown by an indicator composed of colored LEDs).
The controller is delivered ready-to-use. This reliable fan controller is equipped with a sealed waterproof cover, flap plugs and a low voltage sensor, making it perfect for use in wet rooms.
A 4-meter cable is included with the sensor.
Technical data:
- Housing: 200x250x180mm
- Driver: 265x300x205mm
- The device is designed for current: 2,5A / 600W. Voltage: 230V / 50HZ
- The 5V digital sensor measures the temperature in the range: –55 ° C to + 125 ° C (–67 ° F to + 257 ° F).
- Temperature measurement accuracy: 0.5 ° C (in the range from -10 ° C to + 85 ° C)
- Accuracy of humidity measurement: 4.5% rh
- High protection class: IP44
- FC04-202EU
