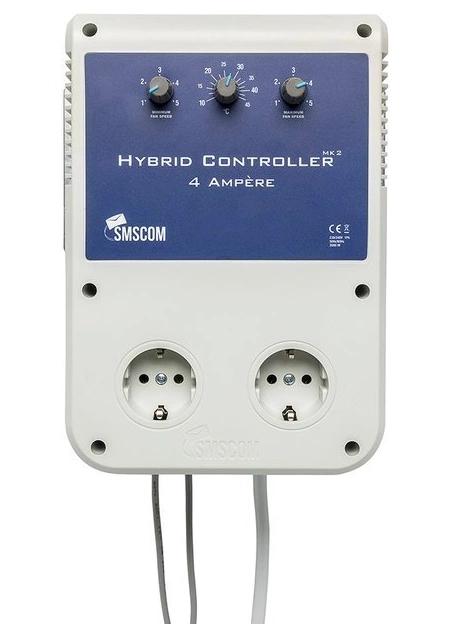

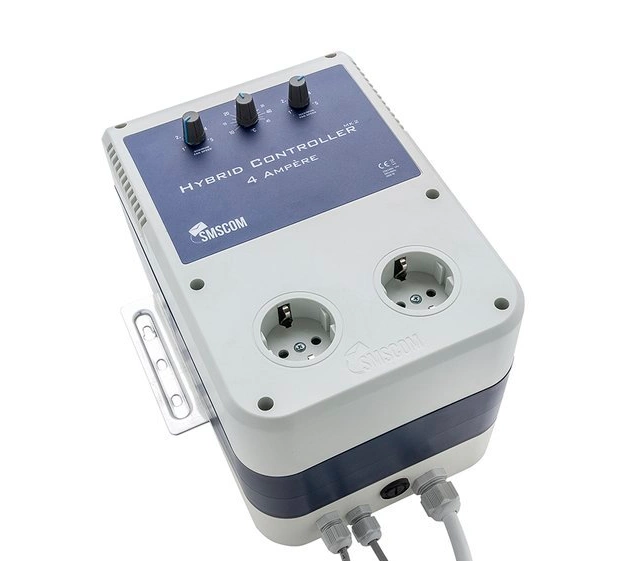

Hybrid Controller PRO 4 Amper climate control system
The Hybrid Controller 4A is a hybrid that controls the blow-in and blow-out fan. Temperature sensor combined with a mechanical fan speed control system. It is designed to maintain a constant temperature and humidity inside growing rooms. It keeps the airflow under control at all times. It is an ideal solution for those who are looking for very quiet fans that do not hum / hum. Guaranteed operation for all types of fans!
The PRO version includes the function of night humidity control, thanks to which the humidity in the "night" time will not increase when the function is active.
How it works:
After setting the desired temperature level and minimum fan speed, the hybrid controller automatically adjusts the fan speeds. There is no negative air pressure due to the perfect synchronization of both fans. Ready to go right out of the box, so no additional wiring is needed. Just plug in the fans, set the desired temperature and minimum fan speed and the Hybrid Controller will do the rest.
The Hybrid Controller PRO is Plug & Play, so no wiring is required.
Setting up the Hybrid Controller PRO 4A
Automatic settings:
Hybrid Controller PRO will automatically select 5 different speed settings to maintain the set temperature. The Hybrid Controller PRO 4A will choose between low and high speed
Manual settings:
Adjust the speed of the fans manually between speeds 1-5.
1. Set Knob 1 to its highest setting (45 degrees).
2. By means of knob 2, you can set the speed manually between speed 1 - 5. The manual setting can only be used when the room temperature is 45 ° C.
Installing the Hybrid Controller PRO driver:
1. Place the fan controller in a convenient location and then place the thermostat in the center of the growth area. Avoid placing the thermostat in direct light or in cold air coming from the ventilation system (incorrect readings).
2. Connect the blow-in fan to the left and the blow-out fan to the right of the controller.
3. Plug the controller into an electrical outlet and turn it on.
4. Set the desired temperature using knob 1.
5. Set the minimum fan speed using the selection knob 2
The Hybrid Controller uses a high-performance relay to regulate the power, The relay is robust and reliable in continuous operation.
Max load **: 4A 900W Hybrid Controller
** Maximum total power that can be connected or divided among the number of sockets.
5-year warranty
