HYBRID-FLO fans are interesting because of the wide range of possibilities and high performance, the technology made provides a strong airflow and high air pressure. Modern technology combines axial, mixed flows. Fans are recommended as part of ventilation systems for various commercial and industrial facilities with high noise requirements, i.e. libraries, conference rooms, educational institutions, kindergartens, etc.

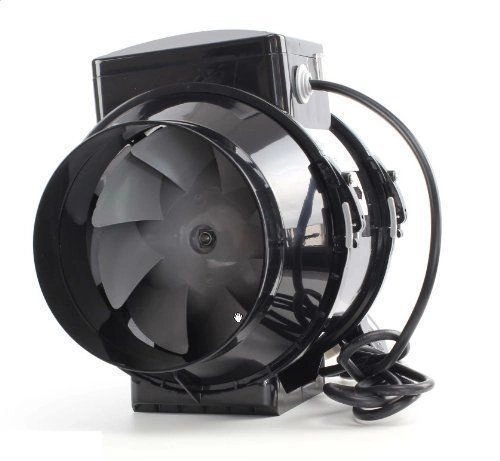

The Black Orchid HYBRID-FLO fan includes a built-in speed control module
The Black Orchid HYBRID-FLO fan includes a built-in speed control module
Specification
|
-Channel connection/diameter: 125mm (5") -Bandwidth: minimum: 240m3/h, maximum: 350m3/h -Power: minimum: 25W maximum: 30W -Voltage [V/50HZ]: 1-230 -Ampere [A] min: 0.11 max: 0.13 -RPM rotations: min:1630 max:2300 -Maximum operating temperature: 0 - 30 °C -For supply and exhaust ventilation -For ventilation of large and medium-sized rooms -Low noise level min. 29 dBA max. 34 dBA -Motor with external rotor on ball bearings with built-in overload protection -High-quality plastic housing -Speed control via speed controller -For horizontal and vertical installation -Security standard: IPX4 -Strong, robust and economical -Vibration-free operation -Includes euro connection cable -Color: black
|
Gallery
Tech specs:
| Maximum fan performance (m3 / h): | 350 |
| power (W): | 30 |
| Flange (mm): | 125 |
| Loudness (dB): | 34 |
| Airflow regulation: | yes |
| temperature regulation: | no |
| Real power consumption (W): | 30 |
