Mixed-Flow RAM fan 100mm two-speed 199m3/h 100mm

Powerful duct fan with 100mm connection diameter

Producer: RAM

Flange (mm): 100

Our price:

85,34 €

/ piece

69,38 €
/ 1piece

Quantity:

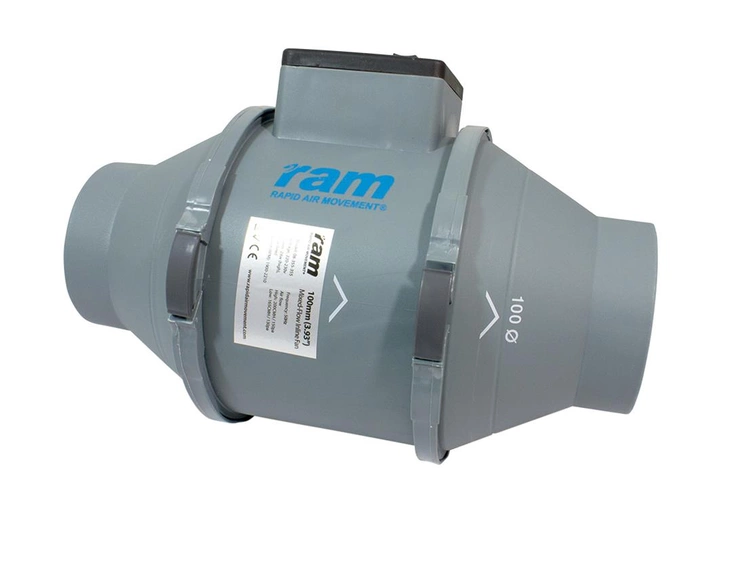

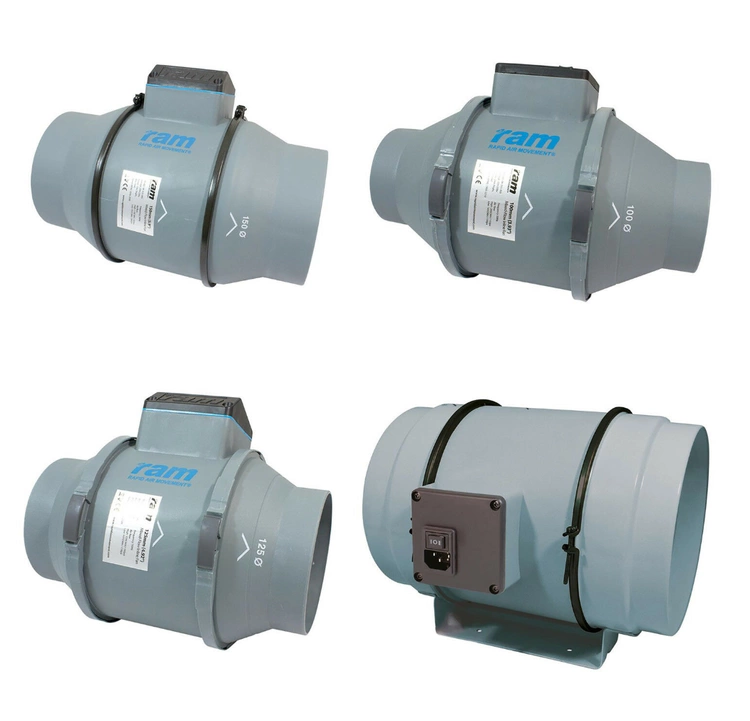

Mixed-Flow mixed flow RAM fan (165 or 199 m3h) optimized for high pressure and quiet airflow.
The Mixed-Flow Inline RAM fan has an integrated mounting bracket and is equipped with an IEC socket.
Fast Clean - is equipped with a release system that facilitates cleaning and maintenance.
Fasteners that remove the fan for maintenance quickly, without tools or interference with the ventilation lines.

Specification:

Channel connection/diameter: 100mm (4")
Operating temperature max:-20°C - 50°C
Bezp. class: IP44

Bandwidth

min: 165 m3/h
max: 199 m3/h

Power

min: 23w
max: 26w

Rpm

min: 1850
max: 2200

Tech specs:

Maximum fan performance (m3 / h):	199
power (W):	26
Flange (mm):	100
Airflow regulation:	yes
