Specifications Q-Max
Max Fan Pro Series inside a silencer
More silent and more powerful
Speed control integrated
3 speed switch integrated
Galvanized metal housing
Integrated Thermal Cutoff switch inside the motor
Rotor-stator uniform airflow
Foam padded silencer for maximal noise reduction
Do not use external fan controller
Max Fan Pro Series inside a silencer
More silent and more powerful
Speed control integrated
3 speed switch integrated
Galvanized metal housing
Integrated Thermal Cutoff switch inside the motor
Rotor-stator uniform airflow
Foam padded silencer for maximal noise reduction
Do not use external fan controller

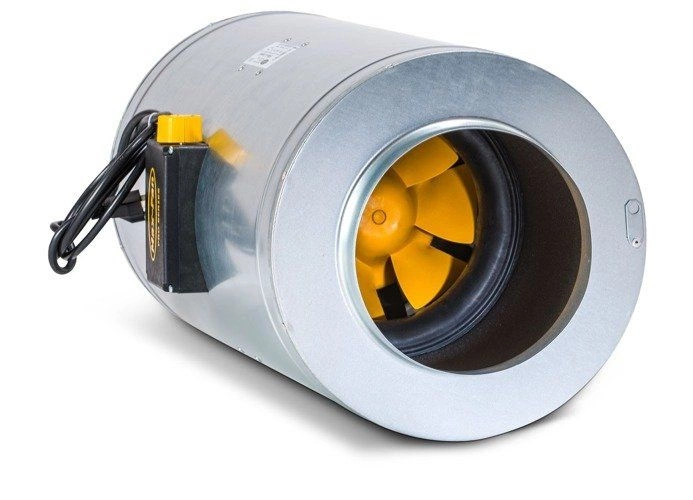

Duct fan of the well-known Dutch company CAN-FAN
Q-Max is a line of extremely quiet fans, with adjustable engine speed. It is ideal for rooms where high fan performance and quiet trouch are required. Suitable for continuous operation. It is characterized by very high failure-free and efficient, and all this thanks to the use of proven engines from the Max-fang I Max-Fan Pro line. The fan has a built-in temperature switch that turns off the power in case of overheating. The engine together with the project made in Switzersoil. The rotors are designed to provide strong airflow while reducing noise levels and low current consumption.
Q-Max is a line of extremely quiet fans, with adjustable engine speed. It is ideal for rooms where high fan performance and quiet trouch are required. Suitable for continuous operation. It is characterized by very high failure-free and efficient, and all this thanks to the use of proven engines from the Max-fang I Max-Fan Pro line. The fan has a built-in temperature switch that turns off the power in case of overheating. The engine together with the project made in Switzersoil. The rotors are designed to provide strong airflow while reducing noise levels and low current consumption.
Specification
|
Connections: Ø 160mm Capacity: 1 speed - 457m3/h,2 speed - 517m3/h,3 speed - 560m3/h Power: 230V, 50Hz Power: 47W Volume dB: min- 57 max-63 High static pressure Weight: 7kg Equipped with power cord (without plug) |
Gallery
Brand
Entity responsible for this product in the EU
Can Fan BVMore
ProducerCan Fan BVAddress:
Handelswe 10Postal code: 4231 EZCity: MeerkerkCountry: HolandiaE-mail: info@canfan.nl
Responsible entityCan Fan BVAddress:
Handelswe 10Postal code: 4231 EZCity: MeerkerkCountry: HolandiaE-mail: info@canfan.nl
Power (W)
47
Performance (m3 / h)
457-560
Flange (mm)
160
Airflow regulation
yes
temperature regulation
no
Maximum fan performance (m3 / h)
560
Real power consumption (W)
69
Loudness (dB)
63
