DESCRIPTION

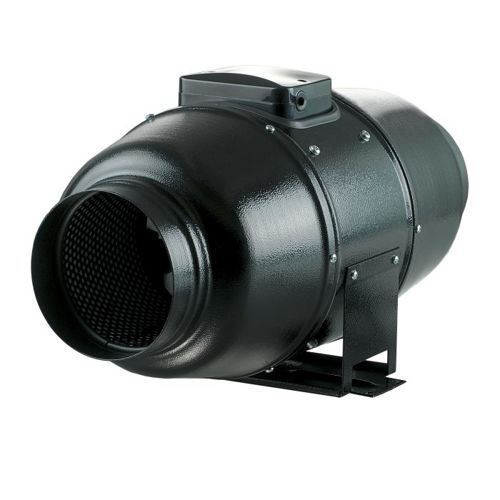

The VENTS-GROUP axial duct fans from the TT Silent-M series are specially adapted for rooms with high noise requirements, eg in scribbles, conference rooms, scientific institutions or kindergartens.
SPECIFICATION
Connection / duct diameter: 315mm
The fan has 2 gears
Capacity
min: 1530 m3 / h
max: 1950 m3/h
Power
min: 213 in
max: 313 w
RPM
min: 1975
max: 2545
Noise level
min: 36 dB
max: 40 dB
Max. Working temperature : 60 ° C
Security class: IPX4
Tech specs:
| power (W): | 313 |
| Loudness (dB): | 40 |
| Flange (mm): | 315 |
| Airflow regulation: | yes |
| temperature regulation: | no |
| Maximum fan performance (m3 / h): | 1950 |
| Real power consumption (W): | 324 |
